THE E-ONE

Metro 100 Quint

AERIAL LADDER

A PROVEN DESIGN WITH AN INCREASED TIP LOAD

The E-ONE Metro 100 ladder is based on the proven design of the Metro 100 which has reliably served departments for over 35 years. The new Metro 100 features a -6 to 81-degree range of motion, and is available in a single or tandem axle configuration, with or without a pump.

The Metro 100 is compact and maneuverable for tight streets. It features crisscross under-slung jacks that require very little space to deploy. Based on the proven HM 100/110 design, the E-ONE Metro 100 Ladder is compact and maneuverable for tight streets. This is an extruded aluminum aerial with ToughTrussTM ladder sections. The Metro 100 model is available in single rear axle or tandem, with or without pump/tank. Tandem axle and Single axle no pump / no tank models have a 500 lb wet or dry tip load. The Single Axle Quint has a tip load of 750 lbs dry and 500 lbs wet.

Features

  • Typhoon® or Cyclone® chassis
  • Medium, long and extended length 4-door cabs available (depending on model)
  • Optional split-raised roof
  • Integral torque box chassis
  • 230”-240” wheelbase
  • Up to 600 HP engine
  • Standard safety features such as roll cage cab, CrewGuard® & ABS brakes
  • Optional safety features such as airbags, G4® (electronic stability control) and collision mitigation system
  • 100’ extruded aluminum ladder with 2.5 to 1 structural safety factor
  • 550 lb tip-load (500 lb firefighters & 50 lb equipment) wet or dry (750 dry lb/ 500 lb wet on single axle quint model)
  • Criss-cross, underslung jack spread of only 12’ (11′ on single axle models)
  • Pinnable waterway
  • Options include Advanced Aerial Control System, auto level, wireless aerial controls, extended range monitor, 2.5” valve at tip, ladder brackets, axe and pike pole brackets
  • Extruded aluminum body construction (stainless steel available on tandem models)
  • Sidestacker body features full-depth compartments
  • Tandem available in center hosebed and SideStacker configurations
  • Truck company body available with single or tandem rear axle (no pump or tank)
  • Hale® or Waterous® pumps up to 2000 GPM (up to 1750 on single axle quint)
  • Optional direct injection foam systems. CAFS available on tandem axle model.
  • 300-500 gallon water tank
  • Customizable discharges and pre-connects to meet departments needs
  • Stainless steel discharge manifold
  • Multiplex electrical system with color display provides increased feature capability and improved diagnostics
  • Options include LED scene lights, LED ladder climbing lights and 6-20kW hydraulic generators
  • Whelen® optical and audible warning packages standard, others optional

TALL HANDRAILS

SAFE AND SECURE CLIMBING.

ToughTruss extruded aluminum ladder sections feature tall handrails and integral non-slip rungs.

750 LB. TIP LOAD

STRENGTH AND VERSATILITY

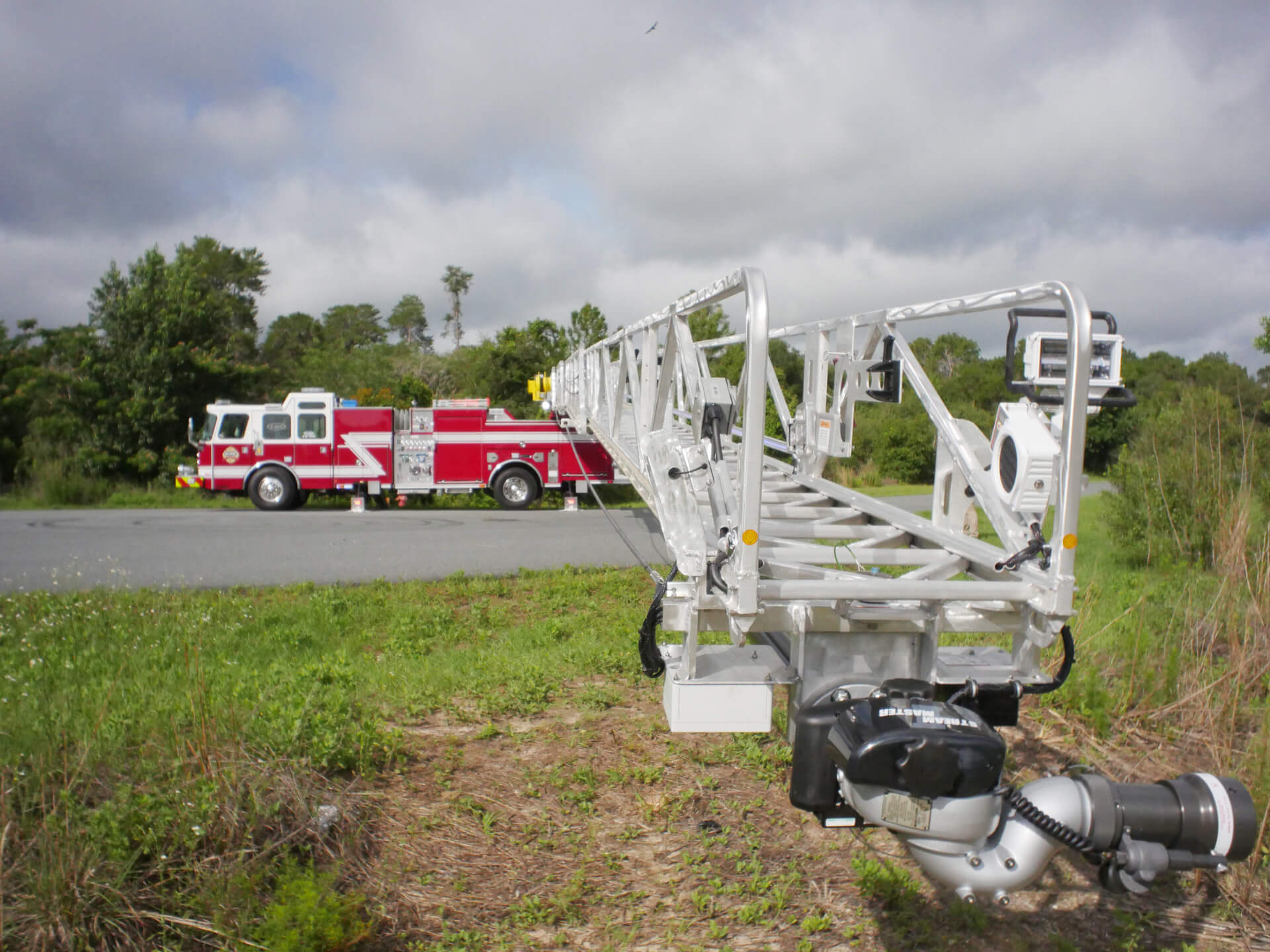

Single axle quint model features 750 lb. tip load (500 lb. flowing). The waterway is a pinnable design so the monitor can be positioned at the ladder tip or pinned back at the end of section 3 for rescue operations. Extended travel range on monitor is available for enhanced capabilities.

METRO 100 SINGLE AXLE HIGHLIGHTS

METRO 100 TANDEM AXLE HIGHLIGHTS
