THE E-ONE

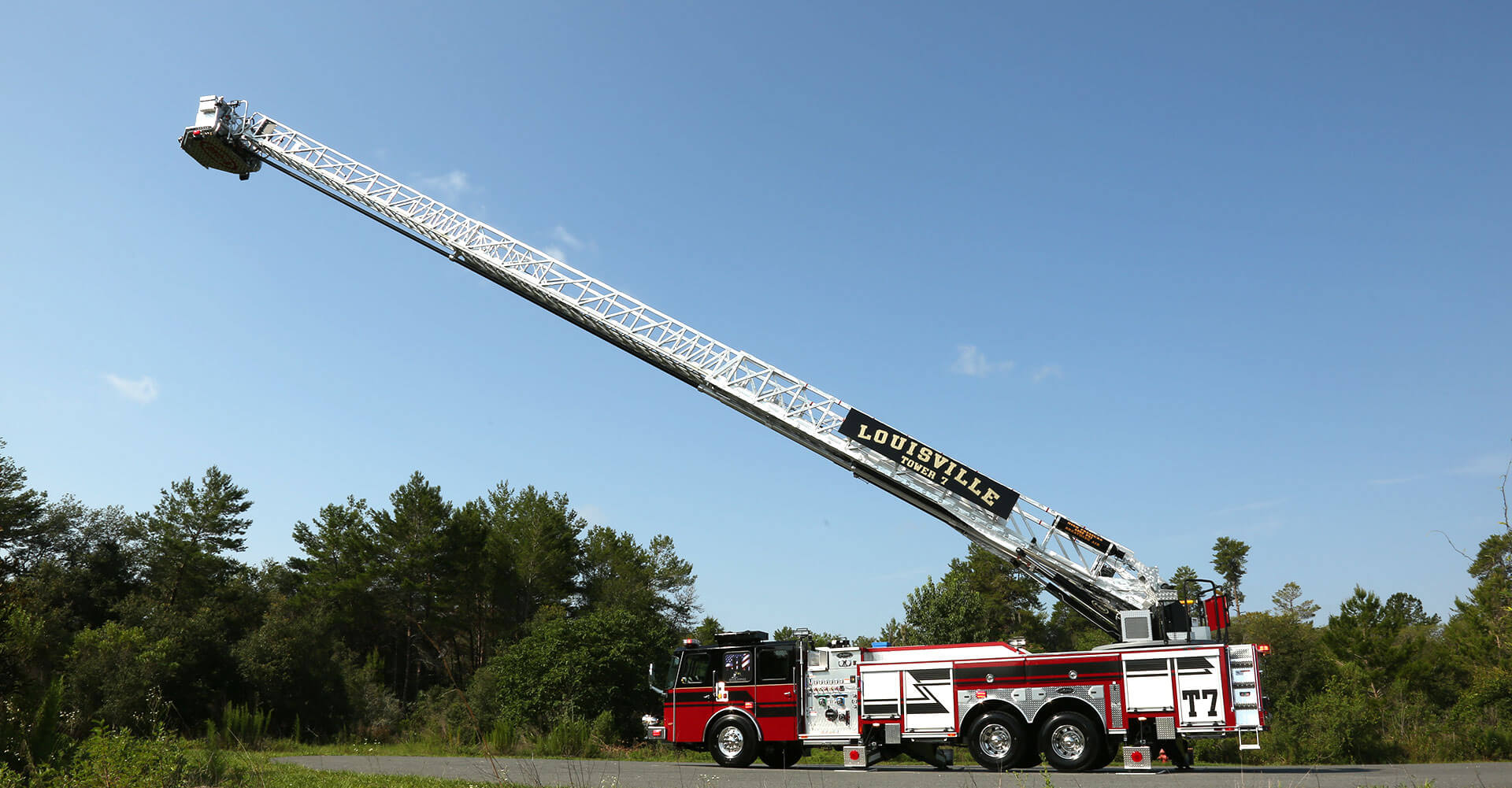

95-PLATFORM

AERIAL PLATFORMS

THE SOLID WORKHORSE

The 95-PLATFORM is a proven design that has stood the test of time for over 30 years and requires less space to set up than larger platforms. At 25% stronger, the 95-PLATFORM exceeds NFPA requirements with a 2.5 to 1 structural safety factor.

The 95-Platform performs with a narrow stabilizer spread, expansive compartment space, easy-to-use SideStacker® hosebed and low maintenance aerial that all combine to provide a reliable, hardworking platform. The 95-Platform has a high safety margin that others can’t offer. With an industry-leading 40-second jack deployment system and full operational envelope with a mere 13’-8” jack spread on a short 245” wheelbase, E-ONE’s 95 Platform out performs the competition.

Features

  • Typhoon® or Cyclone® chassis
  • Medium, long and extended length 4-door cabs available
  • Optional split-raised roof
  • Standard safety features such as roll cage cab, CrewGuard®, ABS brakes, & G4® (electronic stability control)
  • Integral torque box chassis
  • 245”-250” wheelbase
  • 500-600 HP Engine
  • Optional airbags
  • Welded extruded aluminum ladder and platform with 2.5 to 1 structural safety factor
  • Platform rated at 1,025 lb dry (750 lbs firefighters & 275 lbs equipment); 775 wet (500 lbs firefighters & 275 lbs equipment)
  • Criss-cross, underslung jacks with only 13’8” spread
  • 11’10” overall height (12’-1” with center hosebed)
  • 3” lower overall height available with CII aerial cab
  • Options include single or dual monitors, 2.5” valves, hose boxes, stokes receiver, breathing air, LED or halogen scene lighting, Aerial Information System (AIS)
  • 3/16” extruded aluminum construction provides an optimal strength-to-weight ratio
  • Available in center hosebed and SideStacker configurations
  • SideStacker body configuration allows for up to 182’ of ground ladder storage with pump and 300 gallon tank, meeting ISO requirements
  • Truck company body available (no pump or tank)
  • Hale® or Waterous® pumps up to 2000 GPM
  • 300 or 500 gallon water tank
  • Stainless steel discharge manifold
  • Optional foam systems, direct injection, CAFS and around the pump (ATP)
  • Customizable discharge and preconnects to meet departments needs
  • Multiplex electrical system with color display provides increased feature capability and improved diagnostics
  • Whelen® optical and audible warning packages standard, others optional
  • Options include LED scene lights, LED ladder climbing lights and 6-20 kW hydraulic generators fire package

THE LEGACY OF THE 95-PLATFORM

A DEPENDABLE WORKHORSE

For over 30 years the rugged 95-PLATFORM design has proven reliability. Not only that, the time- tested design is easily customized for your department.

THE STRONGEST CAB IN THE INDUSTRY

EXCEEDING REQUIREMENTS

Keep crews safe with the cab that withstands more than five times the static roof load and more than twice the frontal impact required by the NFPA.

95-PLATFORM HIGHLIGHTS
